– Aluminum Modular Structure
Mood 15

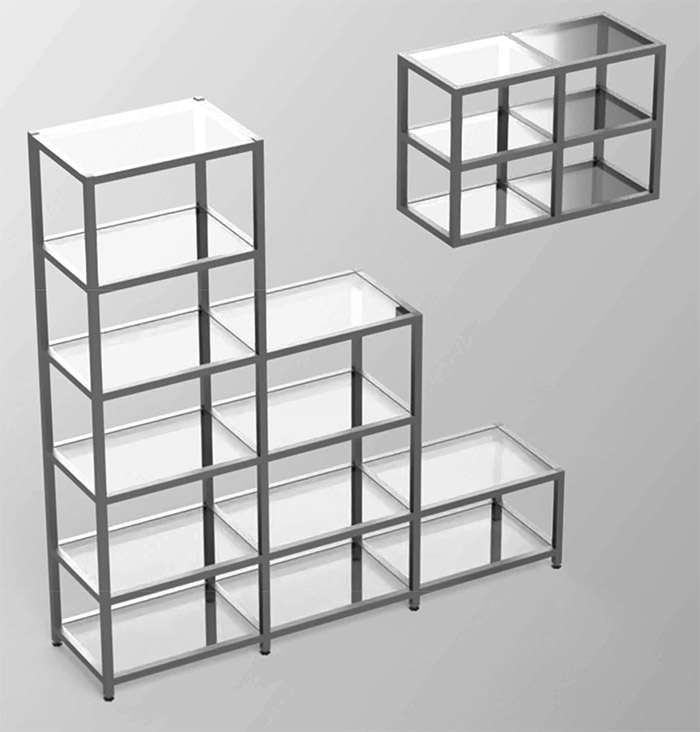

A modular aluminum structure built from a 15×15mm (0.590"×0.590") tube-shaped profile. The flexibility of the profile system allows specifiers to configure units of any size, in floor-standing or free-hanging configurations, with shelves in glass, wood, or any other material flush with the profile.
Modular Aluminum Structure
Mood 15 is built from a single tube-shaped profile (PR-1515 at 15×15mm) connected through dedicated joints (GIU-1515-GR-CV). The flexibility of the profile system allows specifiers to realize units in any dimension and any free, personalised configuration – display cases, retail fixtures, shelving units, and architectural display structures.
The system is supplied in two configurations. The floor structure uses adjustable feet (PIE-M6X30) connected through a dedicated foot joint (GIU-1515-PIE-GR-CV). The free hanging structure replaces the foot with a slotted vertical profile (VN-15x15) and an M5 tie-rod fixed by a dedicated screw (BOC-TIR-1515-PR80-GR), supporting wall-mounted installations.
Available Finishes
Anodised: 12–14 micron (black), 10–12 micron (other colours)
Need a Quote?
Share your dimensions, configuration (floor or free-hanging), and shelf material. Our team will provide pricing tailored to your Mood 15 specification.
SPECIFICATIONS
– Configuration Options
Floor or Free-Hanging
Mood 15 is supplied in two installation configurations. Specify the version that matches the project requirement.
01
Floor Structure
A freestanding configuration with adjustable feet. The standard PR-1515 vertical profile connects to a dedicated foot joint and an adjustable foot, allowing levelling on uneven floor surfaces.
Required Components
02
Free-Hanging Structure
A wall-mounted configuration. The slotted VN-15x15 vertical profile replaces the foot setup, and an M5 tie-rod fixed with a dedicated screw secures the structure to the wall fixing.
Required Components
– Key Features
What Mood 15 Delivers
01
15×15mm Tube Profile
A slim 15×15mm (0.590") aluminum tube profile delivers a minimal architectural footprint while maintaining structural rigidity.
02
Free Configuration
The profile system supports any size and configuration – display cases, retail fixtures, freestanding shelving, or custom architectural builds.
03
Flush Shelf Mounting
Shelves sit flush with the profile for a clean visual line, regardless of material – no exposed ledges or visible brackets.
04
Material-Agnostic Shelves
Specify shelves in glass, wood, stone, or any other material. The structure does not constrain the shelf substrate.
05
Floor or Wall-Mounted
Configure as a freestanding floor structure with adjustable feet, or as a free-hanging wall-mounted structure with M5 tie-rod fixing.
06
Italian Design, USA Made
Rooted in Italian craftsmanship tradition, manufactured at our Chatsworth, California facility for North American specification.
– System Compatibility
Works With These Products
Mood 15 is part of the AluminumXDesign Structures family and shares the same anodized finish palette as the rest of the range.
Related Structures
Mood 25
Larger 25×25mm tube profile for heavier-load structures
First
Free-standing aluminum structure
Shelving
Wardrobe Structures
Only
Aluminum wardrobe profile system with hidden joints
Easy Only
Simplified aluminum wardrobe structure
Wall Panels & Doors
– Get Started
Configure Your Mood 15 Structure
Tell us about your project and we will help you specify the right configuration, dimensions, and shelf material.
